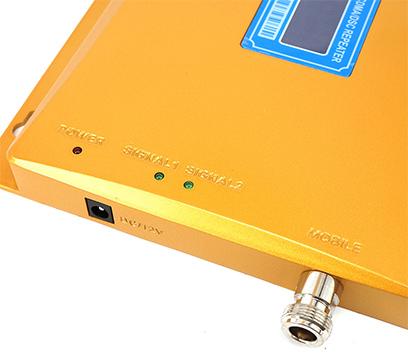

Indoor Pico GSM980 Cellular Signal Repeater 210*160*20mm Dimension 1μs Group Delay

Indoor Pico GSM980 Cellular Signal Repeater 210*160*20mm Dimension 1μs Group Delay

Indoor Pico GSM980 Cellular Signal Repeater 210*160*20mm Dimension 1μs Group Delay
Indoor Pico GSM980 Cellular Signal Repeater 210*160*20mm Dimension 1μs Group Delay Indoor Pico GSM980 Cellular Signal Repeater 210*160*20mm Dimension 1μs Group Delay

Large Image :  Indoor Pico GSM980 Cellular Signal Repeater 210*160*20mm Dimension 1μs Group Delay Get Best Price

Product Details:

Place of Origin: China
Brand Name: VBE
Certification: ISO9001
Model Number: VBE-GSM980

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Customized Product
Packaging Details: Neutral Packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs Per Month
Detailed Product Description
Product Name: Indoor Pico GSM980 Golden Repeater Frequency Range: 890-915MHZ,935-960MHZ
Dimensions: 210*160*20mm Built-overarea: 2000 M²
High Light:

4g lte signal booster

,

mobile signal repeater

Indoor Pico GSM980 Golden Repeater , Signal Booster , Cell Phone Signal Repeater



Model: VBE-GSM980



Product Instructions



     Indoor Pico Repeater (Signal Booster) series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.



Applications



  • To expand signal coverage or fill signal blind area where signal is weak or unavailable.
  • Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots
  • Application Diagram



Technical Specifications



Workig Voltage AC110V-220V
Frequency Range 890-915MHZ,935-960MHZ
Gain 70dB
Power 27dbm
Pass Band Ripple ≤3dB
Noise figure ≤3dB
VSWR ≤1.4(V.S.W.R)
Group Delay 1μs
Size: (H x W x D) 210*160*20mm
Built-overarea 2000 M²



Product Detail



Indoor Pico GSM980 Cellular Signal Repeater 210*160*20mm Dimension 1μs Group Delay 0
