7 Brands 16W GPS Signal Jammer Remote Control VHF / UHF / GSM Silver Color

China 7 Brands 16W GPS Signal Jammer Remote Control VHF / UHF / GSM Silver Color supplier
7 Brands 16W GPS Signal Jammer Remote Control VHF / UHF / GSM Silver Color supplier 7 Brands 16W GPS Signal Jammer Remote Control VHF / UHF / GSM Silver Color supplier

Large Image :  7 Brands 16W GPS Signal Jammer Remote Control VHF / UHF / GSM Silver Color

Product Details:

Place of Origin: China
Brand Name: VBE
Certification: ISO9001
Model Number: VBE-7IS

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton with Netural Packing
Delivery Time: 3-5 Working Days After Receiving Payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Product Name: GPS Signal Jammer RF Output Power: Up To 16W
Power Supply: 110-250VDC+12V Average Out-putting Power: 35dBm 33dBm
Dimensions: 210*170*50mm Net Weight: 2.8kgs
Antennas: 7pcs Omni Antennas Color: Silver

7 Brands 16W Wifi Cell Phone Mobile Network GPS Signal Jammer with Remote for VHF / UHF / GSM / CDMA / DCS / PCS / GPS

Product Fetures:

  1. Internal Cooling fan to make the jammer work more stably
  2. Provide 360 degree jamming
  3. Remote control available to ON/OFF the jammer
  4. Output power can be adjustable
  5. Each frequency channel can be controlled separately
  6. Frequency ranges selectable
  7. Infrared Remote Control Available


Product  Applications:
Prisons, Recording Studios, Banks, Contract Tendering Rooms, Churches, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, etc.

Product Specification:

Total RF Output Power: up to 16W
Jamming frequency bands (7 Bands Selectable of VHF / UHF / GSM / CDMA / DCS / PCS / 3G / 4G / WIFI / GPS , etc):
Frequency ranges Channel Output Power
CDMA: 850-894MHz 35dBm
GSM: 925-960MHz 35dBm
DCS: 1805-1880MHz 35dBm
PCS: 1900-1990MHz 33dBm
3G: 2110-2170MHz 33dBm
WIFI: 2400-2484MHz 33dBm
4G: 2620-2690MHz 33dBm
Jamming Range: 2 to 50 meters depending on the environment signal strength
Power Adapter Output: 5VDC-8A
Energy Consumption: 60W
Working Hours: long time
Power Supply: 110V to 240VAC
Dimension:210mmx50mmx170mm(L x W x D)
Net Weight: 2.8kgs
Humidity: 30%-95%
Operating Temp: -10ºC - +65ºC
Antennas: 7pcs Omni Antennas
Remote Control: Infrared Remote Control available

BandFrequence RangeAverage Output Power
CH1CDMA:870-880 MHz35dBm
CH2GSM:925-960 MHz35dBm
CH3DCS:1805-1920MHz33dBm
CH43G:2010-2045 MHz33dBm
CH53G:2110-2145 MHz33dBm
CH64G:2300-2390 MHz33dBm
CH74G:2555-2655 MHz33dBm
Size210*170*50mmWeight2.8kg
Output power16WPower SupplyAC110-250V/DC +12V
Woking Temperature-40-50℃Relative Humidity30-80%
Jamming Signal2G/3G/4GJamming Range2-50m
Output Port7 PortsChangeable SignalGPS/WIFI/VHF/UHF

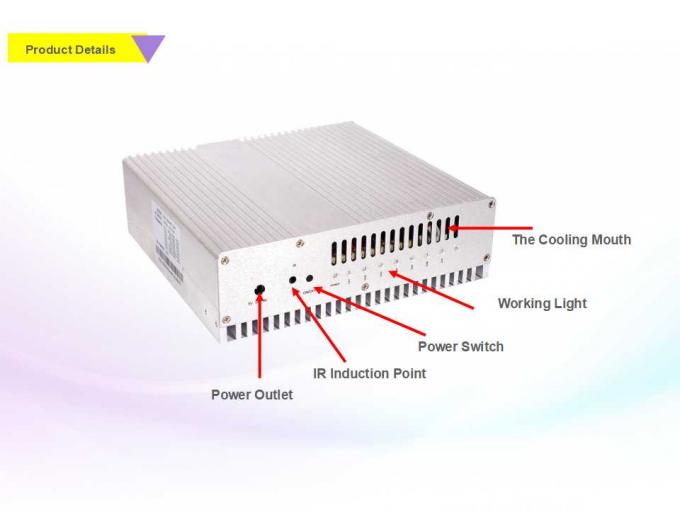

Product Image:
7 Brands 16W GPS Signal Jammer Remote Control VHF / UHF / GSM Silver Color

FAQ:

Why is there still a signal on the phone's signal indicator when it works?
A: It's just an illusion.In fact, the mobile phone has been unable to communicate.When you press the pull button, you will find that there is no signal on the signal indicator.The cell phone signal shield will not interfere with the normal work of other electronic devices. The antenna should be installed on the corresponding signs of each channel on the host, and then connected to the host power supply.

The effective coverage of the shield is a circular area centered around the shield, so be careful to choose the location of the shield so as to avoid blocking the dead Angle?
A: No.This is because the electromagnetic signal emitted by the cell phone's signal shield is completely within the country's mobile operating band, which only blocks mobile communication.And this signal is always in a relatively static state, and will not affect any electronic equipment.

Are cell phone signal Jammer harmful to people and mobile phones?
A: Please rest assured that the electromagnetic signal intensity emitted by the cell phone signal Jammer is very weak. The test data indicates that this signal strength is far from harmful to the human body.At the same time, the mobile phone signal shield is just blocking the forward signal of the phone, so that the cell phone cannot be connected with the base station, so there will be no damage to the phone itself.

Is there any difference between the effective shielding distance of the mobile phone signal shield in indoor and outdoor use?
A: There are.The effective shielding distance (30-40 meters) of the cell phone signal shield is generally referred to as indoor distance.In open areas, the effective distance of shielding can be several hundred meters.It should be noted, whether they are within the room, or in outdoor use, effective shielding effect of shielding distance has relationship with environmental conditions, such as from the base station near and far, placed, etc.Therefore, when using cell phone signal shield, this factor should be fully taken into account to avoid blocking the dead Angle and thus affect the shielding effect.

Is the cellular signal shield the same for GSM mobile phones and CDMA mobile phones?
A: that's a good question.Because CDMA mobile phone's anti-interference performance is far superior to that of GSM mobile phone, the effective shielding distance for CDMA mobile phone is smaller than that of GSM mobile phone, but the difference is not very large, about 2-4 meters.But it also reminds users to pay attention to some particularly important sites, and should increase the number of mobile phone signal blockers when necessary to ensure the shielding effect of CDMA mobile phones.

After working for a period of time, the mobile phone signal mask is hot. Will working long hours damage the machine?
A: thank you for your care. This is a normal phenomenon.In the design, we use the thermal conductivity of aluminum alloy to assist the heat dissipation.This can guarantee long time stable work.As a result, the machine will not damage the machine.
