Product Details
Place of Origin: China
Brand Name: VBE
Certification: ISO9001
Model Number: VBE-3UAV
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: Customizable
Packaging Details: Wooden Packing
Delivery Time: 3 working week
Payment Terms: T/T, Western Union,
Supply Ability: 5000Set per year
Product Name: |
UAV / Drone Signal Jamming System |
Jamming Radius: |
800 ~ 1500meters |
Dimentions: |
103*53*48cm |
Weight: |
27.5kg |
Power Consumption: |
80W |
Build-in Battery: |
24V 8A (continue Working 2 Hour) |
Product Name: |
UAV / Drone Signal Jamming System |
Jamming Radius: |
800 ~ 1500meters |
Dimentions: |
103*53*48cm |
Weight: |
27.5kg |
Power Consumption: |
80W |
Build-in Battery: |
24V 8A (continue Working 2 Hour) |

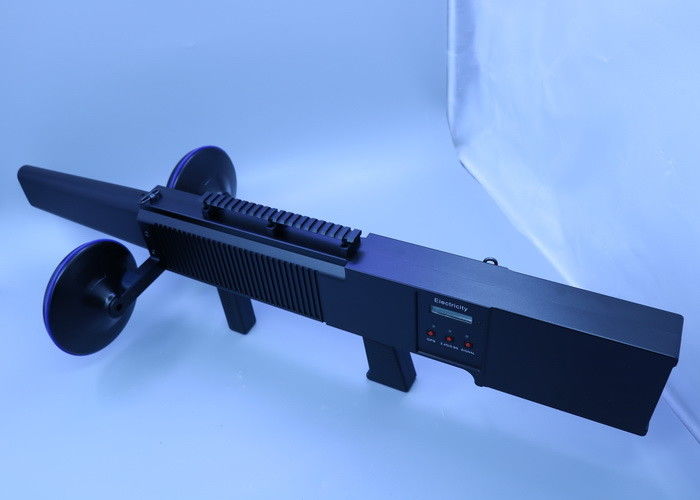

Gun Type Drone Frequency Signal Jammer , Drone Jammer Kit Anti Tracking Featuring
Gun Type Anti Tracking Portable UAV / Drone Signal Jamming System , Drone Signal Jammer
User guider - VBE-3UAV 3 Band UAV Jammer User Guide.docx
Product Description
-----Portable UAV/Drone Signal Jamming System-----
The portable UAV/drone signal jammer VBE-V5.0 is our company's latest product designed by R&D department, against the widespread use of UAVs nowadays. It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, so as to force the UAV to fall or return. The jamming distance reaches more than 1500 meters.
-----Features-----
1.Outdoor waterproof case with protection level of IP55
2.UHF broadband jamming technology: highly effective power & long jamming distance
3.Separate control of each module, convenient operation.
4.High quality tubular radiator, effective in radiating heat.
5.Import components; the moderating circuit-starting design avoids a spark when the device turns on/off.
High integration & Stable operation.
6.Batteries are separate from the main device, easy to be replaced and maintained.
-----Function-----
Effective interference with UAV's Remote-Control Signal 2400MHz, GPS signal 1500MHz, Remote-Control Signal and Image Transmission Signal 5800MHz.
-----Application-----
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of military important places, etc.
that forbid aerial photography by use of UAVs
-----Monitoring System-----
Our company develops a centralized monitoring system, which can monitor all the devices together by connection to the Internet.
The network topology is as follow:
-----Technical parameters-----
| Channel | working frequency | Output power(±1dBm) |
| CH1 | 2.4G Flight control | 38 dBm |
| CH2 | GPS L1 | 38 dBm |
| CH3 | 5.8G Flight control | 38 dBm |
|
Built-in Battery: 24V8A(Continuous work for 2 hours) Jamming distance: 800 ~ 1500 meters |
||
|
Power Consumption : 80W Main engine weight: 5.7Kg Main engine size(L×W×H):960×400×230 mm Wooden packing size: 103*53*48cm, G.W.:27.5kg |
||
|
Humidity: 5%-95% Running temperature: -20 to +50 degree |
||
-----Monitoring Interface-----
Internet
Internet monitoring
When connecting the monitor server with public network, you can monitor all the online devices. You can login the monitoring system anywhere in the world, and have a real-time monitoring on the online devices of any area in the world.
Real-time monitoring
All the online devices' parameters and operating state will display on the interfaces of the system in real time, such as output power, working temperature, operation normal/abnormal, devices online/offline and so on.
Main Interface
Setup Interface
On the system interfaces, you are allowed to modify devices' working parameters as you need. For example, to increase or decrease the output power; to turn on/off signal output of all/some of the frequency bands-the setup will get a real-time response on the devices.
Real-Time Alarms
When any device has failure alarms (such as standing wave alert, less power alarm, over-temperature alarm, etc.), the monitoring system will mark it with an eye-catching red, and gives detailed alarm information, convenient for system administrator and engineering personnel to arrange maintenance work.
