Military Patrol Convoy Bomb Jammers Cell Phone Blocker 1000W Consumption Stable Working

China Military Patrol Convoy Bomb Jammers Cell Phone Blocker 1000W Consumption Stable Working supplier
Military Patrol Convoy Bomb Jammers Cell Phone Blocker 1000W Consumption Stable Working supplier Military Patrol Convoy Bomb Jammers Cell Phone Blocker 1000W Consumption Stable Working supplier

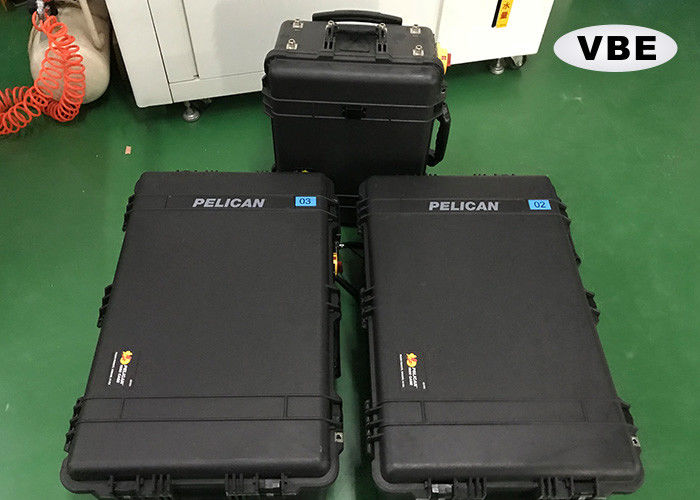

Large Image :  Military Patrol Convoy Bomb Jammers Cell Phone Blocker 1000W Consumption Stable Working

Product Details:

Place of Origin: China
Brand Name: VBE
Certification: ISO 9001
Model Number: VBE-8P

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Customized Product
Packaging Details: Neutral Packing
Delivery Time: About one month
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per year
Contact Now
Detailed Product Description
Product Name: High Power Portable Mobile Signal Jammer , Cell Phone Signal Jammer Power Supply: AC 220V
One Band Output Power: 10-100Watt Power Consumption: 1000W
Dimensions: 800×500×310 Mm Frequency Band: 1-8 Channel
Weight: 53.6kg Antennas: 8pcs Omni Antennas

Hand Pull Mobile Signal Jamming System , High Power Signal Jammer for Military border patrol

Product Fetures:

l Using UHF broadband interference technology.
l High effective power (channel power) and large interference radius.
l Imported device, slow start circuit design can avoid the mechanical switch fire phenomenon, high integration, stable work.
l Perfect self-protection function. When the device is warned of overheating fault, the shielding device will automatically shut down the failed module to avoid the damage of the shielding device.

Product Applications:


  • Prisons, Recording Studios, Banks,
  • Contract Tendering Rooms, Churches,
  • Classrooms, Testing Facilities,
  • Security Services, Military Units,
  • Secret Services, News Conference Rooms,
  • Libraries, Museums, Courts,
  • Border Patrol and Drug Enforcement, Customs, etc.


Product Specification:

No.ChannelWorking FrequencyOutput Power(±3dBm)
1CH120-100 MHz44.77dBm
2CH2100-300MHz44.77dBm
3CH3300-500MHz47dBm
4CH4800-1000MHz47dBm
5CH51520- 1670 MHz48.75dBm
6CH61800-2000 MHz48.75dBm
7CH72000-2200 MHz48.75dBm
8CH82400-2690 MHz48.75dBm
9Power: AC 220V
10

Power Consumption : 1000W

Mainframe weight: 53.6Kg Size(L×W×H):800×500×310 mm

11Humidity: 5%-95% Running Temperature: -35 to +80 ℃


Product Details:

1. System accessory table


NoNameQtyRemark
1Antenna8pcsOmnidirectional
2Wire controller1pcs
3Line controller control line1pcsStandard
4Spare Line controller control line

1pcs

20M
5Power Line1pcsStandard
6Hand-pull Box1pcsSystem Accessary

2. Omnidirectional Antenna Parameter List

Input impedence50Ω
standing wave≤1.8
Gain3dBi
Power Capacity150W
Direction of PolarizationVertical Polarization

Cross Modulation

<-107dBm

Interface Type

7/16 or N-K

Lightning Protection

Direct Grounding

Wind Protectionnn

60(m/s)

Pole Diameter

Φ25/40(mm)


3. Product Application Place
Military Patrol Convoy Bomb Jammers Cell Phone Blocker 1000W Consumption Stable Working
Tag: High Power Signal Jammer for Military border patrol.

Product Usage:

Step 1 - Open the box
  • Open the box. Keep unpacked boxes ready for future removal or shipment.
  • check that the open equipment and accessories are in good condition. If any defects or damage are found, please contact your supplier as soon as possible.

Step 2 - Connecting antenna

  • Open the suitcase and take out the antenna. Note: do not activate the shield until the antenna and shield are not well connected, otherwise, the shield will be severely damaged. All costs and consequences arising from this will be borne by the user himself.
  • Each antenna is connected to the RF output interface of the host computer one-to-one.


Step 3 - Start Jammer

  • Connect the host AC~220V port with the power cord in the suitcase: then dial the side red knob switch to the "1" file;
  • The start and output power adjustment of the wire controller:

           1) Connection wire controller
               The 6pin wire control connection line is connected to the 6pin wire control connection
               port on the side of the chassis;
           2) Control the output and output power of the power amplifier with a wire controller.
               [ALL Ch]: screen all 4Channel on / off buttons;
               [ALL PA]: power output adjustment keys for all 4Channel of the shield;
               [CHX]: the output of Channel X is the Channel number of 1 ~ 8 when the output of
                          Channel X is turned on / off alone;
               [PAX]: regulating the power output of ChannelX alone X is the Channel number of 1 / 8.
                         The output power regulation is divided into five sections: 20: 20 and 40.

Step 4 - Turn off the Jammer


  • the power output switch of each channel is closed;
  • Power off:

          1) Dial the red knob switch on the side of the chassis to "0";
          2) Unplug the power cord;
