Product Details
Place of Origin: China
Brand Name: VBE
Model Number: VBE-6P
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Features:
Frequency bands and output power selectable.
Integrated main equipment, battery, and antennas increases mobility of the device;
Different frequency bands can be controlled independently by different switches;
Local or wire control operation mode can be selected based on actual environment;
AC or DC power supply can be selected;
Power Amplifiers protection design ensures the working reliabity of the device.
Applications:
Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks;
Protect explosives handling experts;
Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc;
Risk mitigation and explosives removal in specified spots;
Police used for VVIP convoy, ECM, anti drug, riot control, etc.
Military used for border control, ECM etc.
Technical Specifications:
| Working frequency ranges: 450-470MHz/851-894MHz/925-960MHz/1800-1880MHz/1900-1990MHz/2110-2170MHz/2400-2484MHz/2620-2690MHz Selectable |
| Working Bands: 5 to 6 bands selectable |
| RF Output Ports: up to 6 RF Output Ports selectable; |
| Channel RF Output Power: up to 50W; |
| Total RF output power: up to 300W; |
| Power Consumption: 300W |
| Internal Modulation: Analog; |
| Effective jamming range: 50-100m depending on the the environment signal strength; |
| Jamming target: CDMA, GSM, DCS, PCS, 3G, 4G, WIFI, etc; |

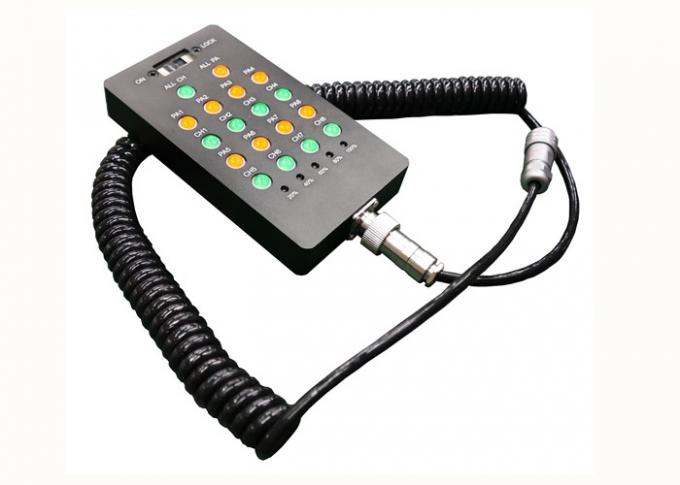

| Remote Control: Wire Control Panel Available (optional) |
| Power supply: 220VAC, 12-24VDC battery (optional); |
| Continuous working hours: Long time (AC 220V); 2hours by battery, rechargeable; |
| Antennas type: high gain omni antennas |
| Main equipment Dimension: 630*390*210mm; |
| Main equipment Weight: 30kgs; |
| Operating Temp: -20ºC - +50ºC |
| Humidity: 5% - 95% |
