Outdoor Waterproof Prison Cell Phone Jammers AC110 - 220V Power Supply

Product Details

Place of Origin: China

Brand Name: VBE

Certification: ISO 9001

Model Number: VBE-7ODS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Neutral Packing

Delivery Time: About 20 days

Payment Terms: T/T, Western Union,

Supply Ability: 10000 pcs per year

Get Best Price
Contact Now
Specifications
Highlight:

mobile phone signal blocker

,

signal jamming device

Product Name:
7 Bands Outdoor Waterproof High Power Signal Jammer
Power Supply:
AC110-220V
Jamming Range:
2m To 50m
Single Channel:
10W
Weight:
2.5kg
Dimensions:
400mm X288mm X 155mm
Product Name:
7 Bands Outdoor Waterproof High Power Signal Jammer
Power Supply:
AC110-220V
Jamming Range:
2m To 50m
Single Channel:
10W
Weight:
2.5kg
Dimensions:
400mm X288mm X 155mm
Description
Outdoor Waterproof Prison Cell Phone Jammers AC110 - 220V Power Supply

7 Bands Outdoor Waterproof Mobile Phone WiFi GPS High Power Signal Jammer , Prison Cell Signal Jammer



VBE-ODS Series Jammer:



  • VBE-ODS series is an outdoor waterproof High-power signal sealing equipment, because of its small size, can also be installed indoors.
  • The VBE-ODS adopts directional transmitting antenna to guarantee absolutely effective interference on the front side of the shield and no interference on the back of the equipment. No interference signals can be leaked outside the required site. The VBE-ODS is a very good choice to ensure the interference effect in the site.
  • The VBE-ODS series transmitting antennas are integrated into the equipment, and the whole machine is waterproof design. The installation equipment does not need to install the antenna, the outdoor installation does not have to worry about the storm attack, the installation and maintenance are very convenient.
  • VBE-ODS series of remote management system, with our company's control platform, whether local area network or wide area network can also achieve remote network centralized management.



Product Function:



Can Jamming CDMA , GSM , SCDMA , DCS(1800MHz), PCS(1900MHz),PHS,3G,4G,Wifi,GPS,VHF/UHF, Etc.



Product Features:



  • The power is adjustable.
  • The fuselage uses aluminum, good thermal conductivity and fast heat dissipation.
  • It can be used continuously, stable and long life.
  • Continue to block the signal, harmless to the human body.
  • The signal is shielded and other signals are not interfered with.
  • Good waterproof, can be installed outside.
  • More shielded signal segments, can be selected according to customer needs.
  • With network control, can be multiple centralized monitoring.


Product Applications:



  • Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations, detention centers, interrogation rooms, courts,
  • Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
  • Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene);
  • All kinds of military sites and other prohibited places to use mobile phones.



Technical Specifications:



  Channel Frequency Band Output Power









Frequency Band(Optional)




CH1 CDMA:870-880MHz 35dBm
CH2 GSM:925-960 MHz 35dBm
CH3 DCS:1805-1920MHz 35dBm
CH4 3G:2010-2145 MHz 35dBm
CH5 4G:2300-2390 MHz 35dBm
CH6 4G:2555-2655MHz

35dBm

CH7

GPS:1550-1580MHz

35dBm



Total Power 70W

​Temperature Range

-25°C ~ + 65°C

​Humidity Range

​30%-95%(non condensing)

​Power Supply

AC110-250V/DC +12V

Size

400mm X288mm X 155mm

Weight 2.5kg
Watertproof Grade IP65
Accessories

Antenna / Power Adaptor / Manual / Installation Parts

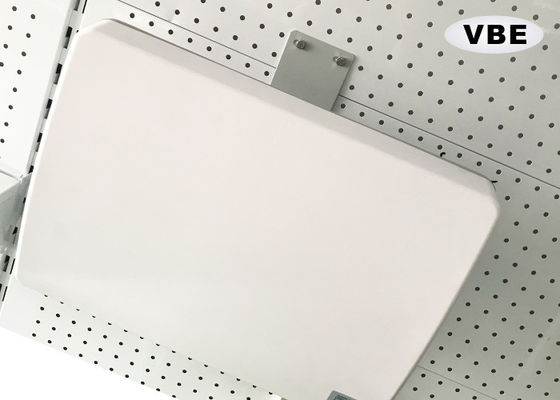

Product Image:



Outdoor Waterproof Prison Cell Phone Jammers AC110 - 220V Power Supply 0
