Detailed Product Description
Product Name: Ku Band RF Power Amplifier PA Frequency Band: 14.0 - 14.5
Working Temperature: 0~+50°C Working Voltage: DC +15V
High Light:

radio frequency power amplifier

,

broadband rf power amplifier

Wireless / Radio / Broadband Rf Amplifier 1.1 – 1.7 GHz Frequency Band

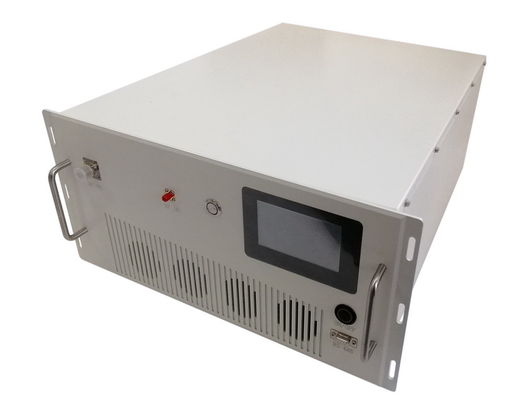

Solid State High Power 1.1-1.7GHz RF Power Amplifier PA , RF Power Amplifier Module




Wireless / Radio / Broadband Rf Amplifier 1.1 – 1.7 GHz Frequency Band 0









POWER AMPLIFIER FEATURES:



Class A/AB linear GaN design

Rack mounted system



Instantaneous wide bandwidth



Suitable for broadband EMI/RFI, Lab, Comm., and EW applications



Suitable for pulse and all single channel modulation standards

Built-in protection circuits



High reliability and ruggedness for mobile applications



POWER AMPLIFIER SPECIFICATIONS:


Parameter   Specification   Notes
Operating Frequency Range   1.1 – 1.7 GHz
Power Output @ Saturation   300 Watt Typ   CW
Power Output @ P1dB   200 Watt Min
Power Gain     54 dB Min   Pin=0dBm for normal operation
Power Gain Flatness   3.0 dB p-p Max   Constant input power
Pulse Characteristics Width   Duty   PRF
100 nS

Input Return Loss     -10 dB Max   Relative to 50 Ohm
2-Tone Intermodulation (IMD)     -30 dBc Typ   44dBm/Tone, = 1MHz
Noise Figure     <20 dB
Harmonics   <-20 dBc Typ   At rated output power
Spurious   -60 dBc Max   Non-harmonics
Operating Voltage   180 - 240 VAC
Power Consumption   1500 Watt Max   At rated Pout
Input Power Protection   +20 dBm Max   <10 Sec without damage
Load VSWR Protection     5 : 1 Max   <1 minute at rated Pout
ENVIRONMENTAL CHARACTERISTICS
Parameter   Specification   Notes
Operating Ambient Temperature     0 to +50 °C
Storage Temperature   -40 to +85 °C
Relative Humidity     5 to 95 %   Non-condensing
MECHANICAL SPECIFICATIONS
Parameter   Specification   Notes
Dimensions W x H x D   430 x 222 x 560 mm   5U - Excluding handles
Weight     35 Kg
RF Connectors In / Out   Type-N Female   Front or rear panel
AC Power / Interface IEC 60320-C14 / 9-Pin D-Sub Or equivalent
Cooling   Built in Fan Cooling   Variable speed
OPTIONAL: Digital Monitor & Control: Ethernet RJ-45 TCP/IP, RS422/485, USB Optional
