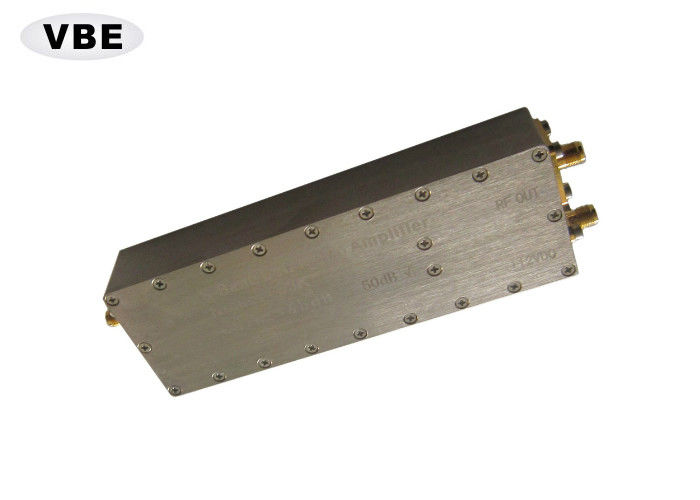

1 - 2GHz RF Power Amplifier Module High Stability Low Power Consumption

Product Details

Place of Origin: China

Brand Name: VBE

Certification: ISO9001

Model Number: VBP2GL

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: Customized Product

Packaging Details: Neutral Packing

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union,

Supply Ability: 10000 pcs Per Month

Get Best Price
Contact Now
Specifications
Highlight:

rf amplifier module

,

radio frequency power amplifier

Product Name:
1-2GHz , L-Band , RF Low Noise Amplifier LNA
Frequency Band:
Customized
Working Temperature:
-40~+70°C
Working Voltage:
DC +12V
Product Name:
1-2GHz , L-Band , RF Low Noise Amplifier LNA
Frequency Band:
Customized
Working Temperature:
-40~+70°C
Working Voltage:
DC +12V
Description
1 - 2GHz RF Power Amplifier Module High Stability Low Power Consumption

1-2GHz , L-Band , RF Low Noise Amplifier LNA , RF Power Amplifier Module

Model: VBP2GL



VBE RF Power Amplifier Module Instructions:



       VBE solutions of RF modules including radio frequency signal source,radio frequency power amplifier(PA),low noise amplifier(LNA), Radio Frequency outdoor unit(ODU) and customized radio frequency module solution,the frequency band cover P-wave band,L-wave band,S-wave band,Ku-wave band and Ka-wave band and so on,broadly applying in high-end equipment system.The module adopt a number of advanced technology in product designing and satisfy different requirement of function and performance parameter.



Features:



1. Wide Frequency band;
2. Low Output noise;
3. Low power consumption, high linearity;
4. Hybrid micro-assembly process, small size, high stability;
5. Wide operating temperature range;
6. Custom made available



Technical Specifications:



NO. Item Description Min Typical Max Unit
1 Frequency Band A
B
C
1.5 1.6
1.4 1.7
1.1 1.6
GHz
2 Gain Selectable 40 50 60 dB
3 Gain Flatness Full Band +/-0.5 dB
4 VSWR Input/Output 1.3:1

5 Noise temperature 23°C 45 °K
6 1dB Compression Point Power

≥+10 dBm
7 3rd Order IMD Dual-tone-12dBm ≤-51 dBc
8 Gain Stability 24 Hours +/-0.5 dB
9 Connector Input/Output N or SMA

10 Input Overload Overload 1min 0 dBm
11 Working Voltage DC +12 +15 V
12 Working Temperature

-40~+70 °C



Applications:



  • Satallite Communication;
  • Military Communication;
  • Jamming Radio Signals;
  • Electronic Countermeasures(ECM);
  • Mobile Communications;
  • Etc.
