Product Details
Place of Origin: China
Brand Name: VBE
Certification: ISO9001
Model Number: VBE-V5.0
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: Customizable
Packaging Details: Neutral Packing
Delivery Time: ABout 1 month
Payment Terms: T/T, Western Union,
Supply Ability: 5000Set
Product Name: |
UAV / Drone Signal Jamming System |
Jamming Radius: |
1000 ~ 1500meters |
Dimentions: |
960*400*230mm |
Weight: |
6kg |
Power Consumption: |
90W |
Build-in Battery: |
24V15A(continue Working 4 Hour) |
Product Name: |
UAV / Drone Signal Jamming System |
Jamming Radius: |
1000 ~ 1500meters |
Dimentions: |
960*400*230mm |
Weight: |
6kg |
Power Consumption: |
90W |
Build-in Battery: |
24V15A(continue Working 4 Hour) |

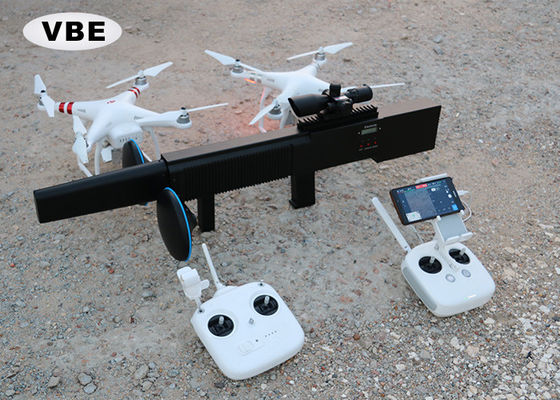

Large Jamming Radius Anti Drone Jammers , Drone Signal Blocker IP55 Waterproof Case
Portable UAV / Drone Signal Jamming System , Drone Signal Jammer
Product Instructions:
The portable UAV/drone signal jammer VBE-V5.0 is our company's latest product designed by R&D department, against the widespread use of UAVs nowadays. It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, so as to force the UAV to fall or return. The jamming distance reaches more than 1500 meters.
Product Function:
Effective interference with UAV's Remote-Control Signal 2400MHz, GPS signal 1500MHz, Remote-Control Signal and Image Transmission Signal 5800MHz.
Product Features:
1.Outdoor waterproof case with protection level of IP55
2.UHF broadband jamming technology: highly effective power & long jamming distance
3.Separate control of each module, convenient operation.
4.High quality tubular radiator, effective in radiating heat.
5.Import components; the moderating circuit-starting design avoids a spark when the device turns on/off.
High integration & Stable operation.
6.Batteries are separate from the main device, easy to be replaced and maintained.
Product Application:
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of military important places, etc.
that forbid aerial photography by use of UAVs
Technical Specifications:
Total RF output power: 30W
Working Frequency bands: GPS1.5G, Drone Control 2.4G, 5.8G
Internal Modulation: FM Hopping Frequency and Sweeping
Signal Source: PLL Synthesized
Sweep rate: Fixed
Effective jamming range: up to 1km depending on the target signal strength
Jamming target: commercial used drones/UAVs
Power supply: 220VAC/110VAC, 24VDC
Power Consumption: 90w
Continuous working hours: 2 hours by Battery
Battery capacity: 24V8A
Antennas type: high gain directional antennas
Dimension: 960*400*230mm
Net Weight: 6kgs;
Operating Temp: -20ºC - +50ºC
Humidity: 5% - 95%
