Product Details
Place of Origin: China
Brand Name: VBE
Certification: ISO 9001
Model Number: VBE-8ODS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Customized Product
Packaging Details: Neutral Packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union,
Supply Ability: 10000 pcs per year
Product Name: |
Adjustable Frequency Internal Antenna Mobile Phone Signal Jammer |
Power Supply: |
Input AC160-240V (110V Can Be Customized ) |
Jamming Range: |
1m To 40m |
Single Channel: |
2 W |
Weight: |
4.5kg |
Dimensions: |
420 X 300 X 130 Mm |
Product Name: |
Adjustable Frequency Internal Antenna Mobile Phone Signal Jammer |
Power Supply: |
Input AC160-240V (110V Can Be Customized ) |
Jamming Range: |
1m To 40m |
Single Channel: |
2 W |
Weight: |
4.5kg |
Dimensions: |
420 X 300 X 130 Mm |

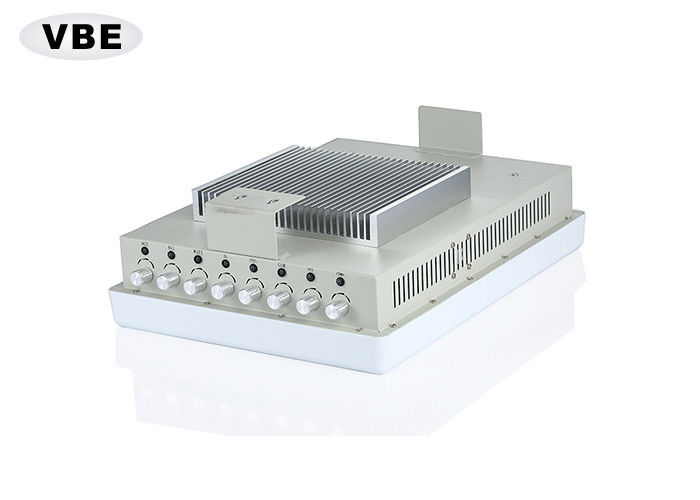

16W Adjustable Frequency Internal Antenna Mobile Phone Signal Jamming , Wifi Signal Jammer
Product Instructions:
The adjustable full frequency signal blockers is our factory adopts advanced foreign technology, in view of the development of communication system, according to the actual circumstance of foreign mobile communication carefully developed high-tech products. It can in the radius of 1 to 25 meters (about 10-250 square meters, can be adjusted according to the required place different field shielding range), internal partition GSM/CDMA/DCS/PHS/td-scdma/VCDMA/CDMA2000 / WIFI/LTE (4 g) signals, cell phone can't play and answer and cannot send or receive text messages,However, it will not interfere with the work of other electronic devices, so as to ensure the security of the required places. When the mobile phone leaves the isolation range, it can resume normal use and has no damage to human body.Power adjustable, convenient and safe.
Product Features:
1. Effective shielding from 1 to 40 m adjustable (field can be arbitrary debugging).
2. The GSM/CDMA/DCS/PHS/WCDMA/TD-SCD MA/CDMA2000/WIFI4G shielding 8 bands.
3. Can work 24 hours continuously.
4. 502 K8 transmitted power 16 w.
5. Use directional antenna, to prevent interference
Product Applications:
Technical Specifications:
| Technical Specifications | ||
| No. | Technical Standard | Technical Parameter |
| 1 | CDMA | 869-894MHz |
| 2 | DCS/PHS | 1805-1920MHz |
| 3 | GSM | 925-960MHz |
| 4 | TD-SCDMA | 2005-2030MHz |
| 5 | WCDMA/CDMA2000 | 2110-2150MHz |
| 6 | WIFI | 2400-2500MHz |
| 7 | LTE1(4G1) | 2300-2390MHz |
| 8 | LTE2(4G2) | 2550-2660MHz |
| 9 | Power Supply | Input AC160-240V (110V can be customized ) |
| 10 | Dimension | 420 x 300 x 130 mm |
| 11 | Net Weight | 4.5kg |
| 12 | Transmission Power for Each Band | 2W+/-220mA |
| 13 | Jamming Range | 1-25meters (about 500 square meters, can be adjusted according to the required place shielding range) |
| 14 | Action Type | All mobie Phones(2G+3G+4G), 4G, wifi signal, etc. |
| 15 | Temperature | -10 ~ 50℃ |
| 16 | Relative Humidity | ≤90% (RH) |
| 17 | atmospheric pressure | 86-106kPa |
| 18 | Positon | Indoor |
Installation Instructions:
This product is available screws directly fixed on a wall or ceiling, the product can be up to 50 ℃, the surface temperature so please stay away from the low thermal objects.
Installation height: 10-2.0m is the best.
Installation direction: do not put the antenna of the cellphone signal shield against the direction of the cell phone base station, otherwise it will affect the use effect.
Application Place:
