Indoor Outdoor 30w N Female RF Power Coupler 800-2700MHz

Name: Indoor Outdoor 30w N Female RF Power Coupler 800-2700MHz
Brand: VBE Technology Shenzhen Co., Ltd.
SKU: VBE-CL2
Price: 220.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: VBE

Model Number: VBE-CL2

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: neutral packing

Delivery Time: 5 to 10 working days

Supply Ability: 100000pcs per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    N Female RF Power Coupler, 30w RF Power Coupler, 2700MHz Indoor RF Coupler


Name:	RF Power Coupler	Frequency Range (MHz):	800-2700
Power (W):	30	VSWR:	≤1.3
Connectors:	N-Female	Size (mm):	842617

Name:	RF Power Coupler
Frequency Range (MHz):	800-2700
Power (W):	30
VSWR:	≤1.3
Connectors:	N-Female
Size (mm):	842617

Description

Indoor Outdoor 30w N Female RF Power Coupler 800-2700MHz

RF Power Coupler 800-2700MHz for Indoor / Outdoor use

Features:

Low insertion loss, high isolation, reliable, suitable for the microwave mobile communication system.

Specific parameters can be designed according to user's requirements.

Applications:

Mobile Communication Network Optimization and indoor distribution system.

Technical Specifications:

Item	(Unit)	Index
Frequency Range	(MHz)	800-2700
Isolation	(dB)	On Coupling≤15 dB ,Isolation ≥20dB; On Coupling＞15 dB ,Isolation ≥30dB
Insertion loss	(dB)	≤2.1	Coupling: 5±0.6
		≤1.9	Coupling: 6±0.7
		≤1.5	Coupling: 7±0.7
		≤0.9	Coupling: 10±0.9
		≤0.9	Coupling: 12±0.9
		≤0.6	Coupling: 15±1.2
		≤0.3	Coupling: 20±1.2
		≤0.2	Coupling:25±1.5
		≤0.2	Coupling:30±2
		≤0.2	Coupling:40±2
VSWR		≤1.3
Power	(W)	30
Temperature	(℃)	-20～+60
Connectors		N-Female
Size	(mm)	842617

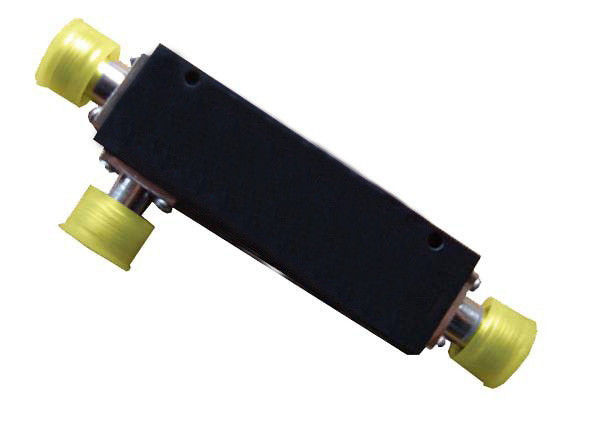

Indoor Outdoor 30w N Female RF Power Coupler 800-2700MHz 0
