Product Details
Place of Origin: China
Brand Name: VBE
Model Number: VBE-B1
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Supply Ability: 8000Set

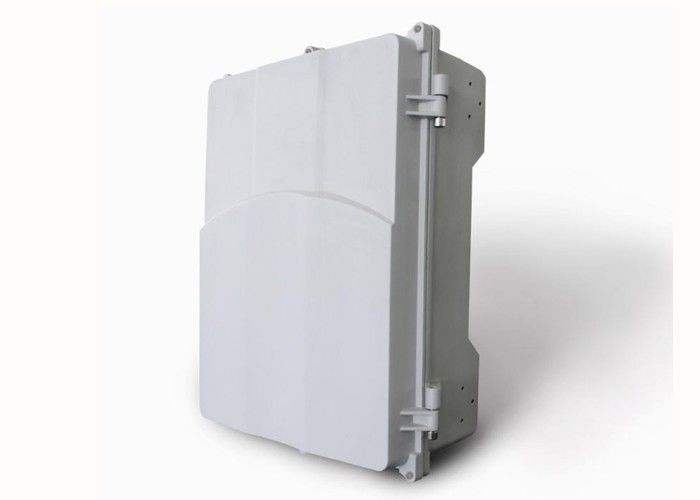

The ICS Repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
The Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality. Its easy installation and maintenance can help carrier get fast return.
FeaturesAluminum-alloy casing with IP65 protection has high resistance to dust, water and corrodingReal Time interference signal cancellation (Multi-path Fading, Feed-Back signal) greatly reduces system isolation requirementNo interference to BTS by adopting linear amplifier with high gain and low noiseAdopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlinkRS-232 port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater's working status and download operational parameters to the repeater
Applications
To expand signal coverage or fill signal blind area where mobile signal is weak or unavailable.
Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages,
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.
Technical Specifications
Items | Specifications | ||||||
Standard | GSM | CDMA | WCDMA | ||||
Working Frequency (customized) | Uplink | 890-915MHz | 824-849MHz | 1920-1980MHz | |||
Downlink | 935-960MHz | 869-894MHz | 2110-2170MHz | ||||
Working Bandwidth | customized | ||||||
Max Input Power | 13dBm | ||||||
Max Output Power | 30-43dBm | ||||||
Gain | ≥ 95dB | ||||||
Gain Adjustment Range | 1~31 dB @ step of 1 dB | ||||||
Voltage Standing Wave Ratio | < 1.5 | ||||||
Noise Figure | ≤ 5dB | ||||||
In-band Ripple | ≤3dB | ||||||
Power Amplifier Oscillation Protection | Interference Cancellation System | ||||||
Cancellation Feedback Signals | ≥6μSec | ||||||
Interference Cancellation Range | ≥25dB | ||||||
Error Vector Magnitude(EVM) | ≤12.5% | ||||||
Spurious Emission | Within working band | ≤ -15dBm/30kHz | |||||
Out of working band | 9kHz~1GHz: ≤ -36dBm/30kHz | ||||||
1GHz~12.75GHz: ≤ -30dBm/30kHz | |||||||
Third-order Inter-modulation | ≤ -40dBc / 30kHz (measured under rated output power) | ||||||
System Delay | ≤5μSec | ||||||
I/O Impedance | 50Ω | ||||||
RF Connector | N-Type (Female) / Changeable / bottom of casing | ||||||
Temperature Range | Operation: -25°C ~ + 55°C / Storage: -30°C ~ +60°C | ||||||
Relative Humidity Range | ≤ 95% (non condensing) | ||||||
Power Supply (customized) | DC +24V / AC 220V±15% or AC 110V±15%, 50Hz | ||||||
Power consumption | ≤200W | ||||||
Backup Power Supply (optional) | 4 hours | ||||||
Casing Level | IP65 | ||||||
Dimensions | 630*400*230mm | ||||||
Weight | ≤40kgs | ||||||
Control Connector | USB port for local / remote | ||||||
NMS Monitoring Function(Optional) | Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
