WCDMA 2100MHz Digital Mobile Signal Booster UMTS System Customized Frequency Range ICS Pico Repeater

Product Details

Place of Origin: China

Brand Name: VBE

Certification: ISO9001

Model Number: VR-1370-W-I

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: Customized Product

Packaging Details: Neutral Packing

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union,

Supply Ability: 1000 pcs Per Month

Get Best Price
Contact Now
Specifications
Highlight:

radio frequency power amplifier

,

broadband rf power amplifier

Product Name:
Mobile Signal Booster
Frequency Range:
Customizable
System:
UMTS
Power Consumption:
≤10W
Dimensions:
189mm X 170mm X 80mm
Weight:
<1.2KG
Product Name:
Mobile Signal Booster
Frequency Range:
Customizable
System:
UMTS
Power Consumption:
≤10W
Dimensions:
189mm X 170mm X 80mm
Weight:
<1.2KG
Description

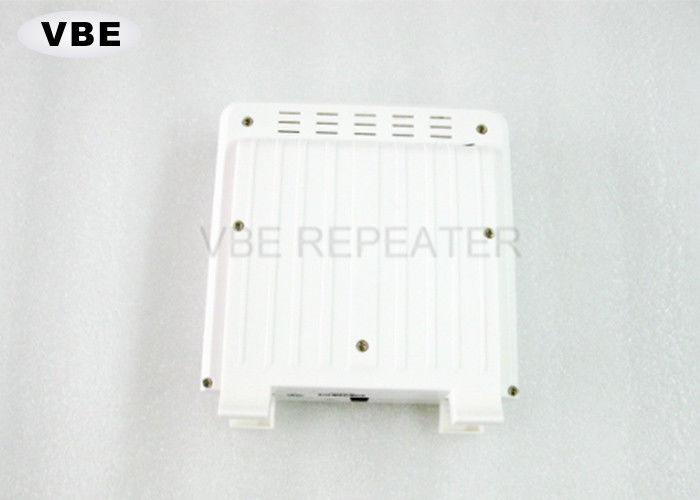

WCDMA 2100MHz Digital Mobile Signal Booster UMTS System Customized Frequency Range ICS Pico Repeater

WCDMA 2100MHz Digital Mobile Signal Booster UMTS System Customized Frequency Range ICS Pico Repeater

13dBm WCDMA 2100MHz Ics Pico Repeater , Mobile Signal Booster



Model: VR-1370-W-I



Product Instructions:



        The WCDMA ICS PICO Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in WCDMA system. And its easy installation and maintenance can help carriers get fast return.

        The repeater is working as a relay between BTS and mobile phones. It receives the low-power signal from BTS via the Built-in Donor Antenna, linearly amplifies the signal and then retransmits it via the Built-in Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Product Features:



  •  Plug-and-Play
  •  Built-in Donor and Service Antennas (Gain: 5dBi)
  •  Channel Selective
  •  Up Link Mute
  •  30dB Adaptive Echo Interference Cancellation
  •  85dB Gain(External Donor Antenna) with Cognitive Auto Power Level Control
  •  Channel-based Power/Gain Configuration and Control



Product Advantages:



  •  Low Power Consumption
  •  Small Dimension
  •  Light Weight
  •  No Fan inside
  •  High System Gain
  •  Directly plug external antenna in MS or BS antenna port and build-in antenna will be disable
  •  Cost Effective


Applications:



No professional configuration required but just Plug and Play, This WCDMA ICS Pico Repeater is a quick solution to extend WCDMA signal coverage to small and medium size indoor environment such as houses, hotels, hot spots, shops, offices, meeting rooms, apartments, and so on. 30dB Adaptive Echo Interference Cancellation with Cognitive Auto Power Level Control makes this WCDMA Pico ICS Repeater able to adapt to the time-variant isolation environment and further provides the optimized signal coverage all the time.


Technical Specifications:



Item Specification
System UMTS
Frequency Range (Customized) Uplink (MHz) 1920-1980
Downlink (MHz) 2110-2170
UL/DL Total Output Power ³13dBm(without built-in antenna gain)
³18dBm(built-in antenna gain added)
Independently Settable Per Channel
Supported Number of Channels Uplink 1, 2, or3 Carriers in 20MHz, Manual Channel Selective
Downlink 1, 2, or3 Carriers in 20MHz, Manual Channel Selective
Max. Gain External Donor Antenna 85dB, Independently Settable Per Channel
Build-in Donor Antenna 70dB, Independently Settable Per Channel
AGC Control Range 30dB, Independently Working Per Channel
Gain Control Range 30dB (0.5dB/Step), Independently Settable Per Channel
Out of Band Gain 3GPP TS 25.106
Gain Flatness ≤ 3dB(Peak-to-Peak)
Error Vector Magnitude(EVM) ≤10% (PCDE ≤-35dB)
Interference Cancellation 30dB
SpuriousEmissions 3GPP TS 25.106
Input/Output Intermodulation 3GPP TS 25.106
Adjacent Channel Rejection Ratio 3GPP TS 25.106
Noise Figure ≤6dB (@Max. Gain)
Group Delay ≤6µs
Operating Temperature Range -30°C~+55°C
Relative Humidity 95%
Power Supply 90~240ACV, 50/60Hz
Power Consumption ≤10W
Standard Compliance 3GPP TS 25.143EN 60950ETSI EN 301 489-1ETSI EN 301 908-11
VSWR VSWR ≤1.5
RF Connector SMAFemale(Switch)for External AntennaExtension
PC Control Interface USB
LED Indicator Input RSSI, AGC Alarm, Isolation Alarm, Power On, Sleep, Output Power
Dimensions 189mm x 170mm x 80mm
Weight <1.2KG
