1300W Full Band Waterproof Convoy Bomb Jammer Vehicle Mounted for RCIED Jamming

Name: 1300W Full Band Waterproof Convoy Bomb Jammer Vehicle Mounted for RCIED Jamming
Brand: VBE Technology Shenzhen Co., Ltd.
SKU: VBE-1300B
Price: 220.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: VBE

Certification: ISO 9001

Model Number: VBE-1300B

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Customized Product

Packaging Details: Neutral Packing

Delivery Time: About 45 days

Payment Terms: T/T,Western Union,

Supply Ability: 1000 pcs per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    signal jamming device, mobile phone signal jammer high power


Product Name:	1300W Full Band Waterproof Digital LED Jammer	Power Supply:	220V AC& 28V DC
Jamming Range:	50m To 200m	Output Power:	Up To 1300 Watts
Working Frequency:	20MHz To 6000MHz, Full Bang Jamming, No Gaps	Frequency Band:	1-15 Channel
Weight:	Approx. 80kg	Dimensions:	660 X 480 X520mm

Product Name:	1300W Full Band Waterproof Digital LED Jammer
Power Supply:	220V AC& 28V DC
Jamming Range:	50m To 200m
Output Power:	Up To 1300 Watts
Working Frequency:	20MHz To 6000MHz, Full Bang Jamming, No Gaps
Frequency Band:	1-15 Channel
Weight:	Approx. 80kg
Dimensions:	660 X 480 X520mm

Description

1300W Full Band Waterproof Convoy Bomb Jammer Vehicle Mounted for RCIED Jamming

Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation

1300W Full Band Vehicle-Mounted Convoy Bomb Jammer, Vehicular VIP Protection RCIED Jammer, High Power IED Jamming system

VBE-B Series Jammer

The VBE-1300BB series, specially developed by our company, is a vehicular high power signal sealing and control device. It provides full band signal shielding and control for security special vehicles or motorcades to prevent the threat of mobile radio/mobile phone remote bomb activation.

VBE-1300B series features large output power and extensive working range, equipped with high-performance shock absorber chassis for excellent bump resistance. Even in off-road environments with poor road conditions, the system operates normally. The included car wire controller enables one-handed operation by the driver.

All antennas of the VBE-B series equipment are hidden in the trunk or roof, and the entire shielding system can be moved with minimal vehicle modification, ensuring excellent concealment.

Product Instructions

The VBE-1300B is a vehicle mounted very high power jammer designed for blocking remote controlled improvised explosive devices (RCIED) used by terrorists
The VBE-1300B uses state-of-art technology for maximum performance in jamming signals that transmit bomb activation commands
Jamming radius of VBE-1300B depends on several conditions including transmitter frequency and output power, distance to receiver, and obstacles between devices

Product Features

Using DDS Jamming technology for precise frequency setting
Waterproof construction suitable for outdoor use
Highly efficient output power with long jamming radius
Slow start up circuit design for stable device operation
Comprehensive self-protection: Over heat protection, Over current protection, High/low input voltage protection, VSWR protection
Easy operation using Wire Control Panel for system monitoring

Product Applications

Military Convoy
VIP Protection
RIOT Control
S.W.A.T Team
EOD Operations
Electronic countermeasure operations

Technical Specifications

Working frequency	20MHz to 6000MHz, full band jamming, no gaps
Output Power	Up to 1300 Watts
Range Jamming	50m to 200m (depending on environment signal strength)
Internal Modulation	Direct Digital Synthesis
Power Supply	220V AC/28V DC
Sweep Rate	Fixed
Antenna	External Omni-Directional Antenna, 360 degree protection
Battery	Integrated Lithium Iron Battery
Battery Capacity	28V - 70A
Battery Working Time	One hour
Dimensions	660 x 480 x 520mm
Weight	Approx. 80kg
Operating Temp	-10ºC - +55ºC
Humidity	5% - 90%

Power Amplifier Protection

Over Heat protection - Thermal protector
Over current protection
High input Voltage and low Voltage protection
VSWR protection: against antenna miss-match including open and short circuit

Remote Control

Wire Control Panel available with:

Output power LCD Indication
Output power adjusting by LCD
Output power on/off per band
Jamming frequency setting by LCD Panel

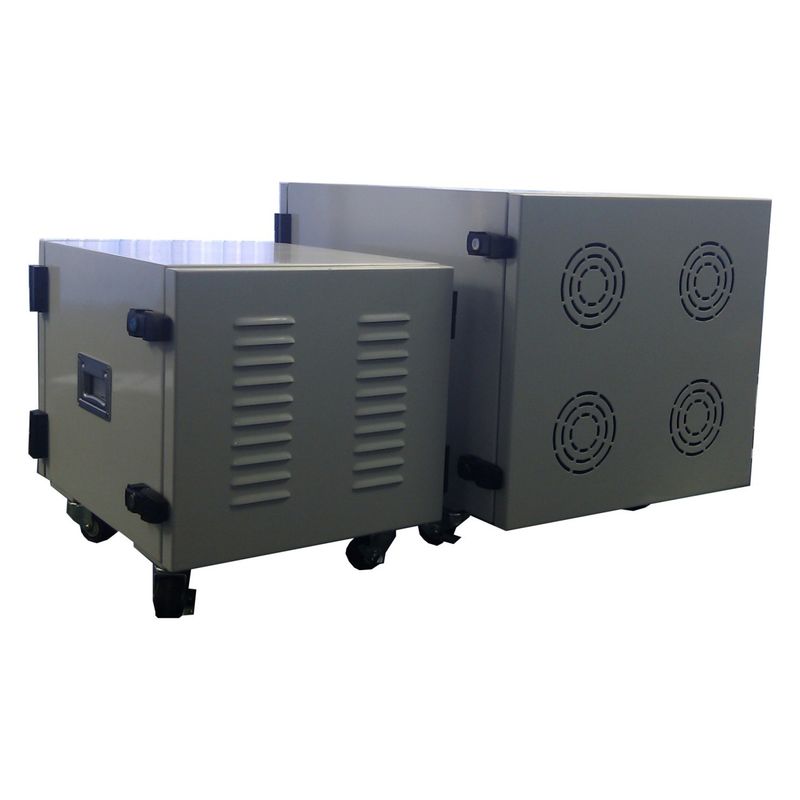

Product Images
