Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation

China Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation supplier
Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation supplier Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation supplier Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation supplier

Large Image :  Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation

Product Details:

Place of Origin: China
Brand Name: VBE
Certification: ISO 9001
Model Number: VBE-1300B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Customized Product
Packaging Details: Neutral Packing
Delivery Time: About 45 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per year
Contact Now
Detailed Product Description
Product Name: 1300W Full Band Waterproof Digital LED Jammer Power Supply: 220V AC& 28V DC
Jamming Range: 50m To 200m Output Power: Up To 1300 Watts
Working Frequency: 20MHz To 3000MHz, Full Bang Jamming, No Gaps Frequency Band: 1-15 Channel
Weight: Approx. 80kg Dimensions: 660 X 480 X520mm

1300W Full Band Vehicle-Mounted Convoy Bomb Jammer, Vehicular VIP Protection RCIED Jammer, High Power IED Jamming system



VBE-B Series Jammer:



The VBE-B series, which is specially developed by our company, is a vehicular high power signal sealing and control device. It provides full band signal shielding and control for the security special vehicles or motorcade to prevent the threat of mobile radio / mobile phone remote bomb.

VBE-B series with large output power, far range of work, equipped with high performance shock absorber chassis, good bumpy resistance, even in the off-road environment in bad road conditions can work normally, equipped with a car wire controller, can be operated by the driver with one hand.

All the antennas of the VBE - B series equipment are hidden in the trunk of the roof , and the whole shielding system can be moved along with a slight modification of the vehicle , so that the concealment is good .



Product Instructions:



  • The VBE-1300B is a vehicle mounted very high power jammer designed for blocking remote controlled improvised explosive devices(RCIED) Used by terrorist
  • The VBE-1300B is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs
  • Jamming radius of VBE-1300B depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc





Product Features:

  • Using DDS Jamming technology to make the Frequency setting more precise
  • Waterproof Jammer, proper to be used in outdoor areas
  • Highly Efficienct output power, long jamming radius
  • Slow start up design of circuit to make the device work stably.
  • Perfect Self Protection: Over Heat protection, Over current protection, High input Voltage and low Voltage protection, VSWR protection
  • Easy operation, using Wire Control Panel to monitor the system


Product Applications:



  • Military Convoy
  • VIP Protection
  • RIOT Control
  • S.W.A.T Team
  • EOD Operations
  • Electronic countermeasure, etc



Technical Specifications:



Working frequency

20MHz to 3000MHz, full band jamming, no gaps

Output Power

Up to 1300 Watts

Range Jamming

50m to 200m( depending on the environment signal strength)

Internal Modulation

Direct Digital Synthesis

Power Supply

220V AC/ 28V DC

Sweep Rate

Fixed

Antenna

External Omni-Directional Antenna, 360 degree protection

Battery Integrated Lithium Iron Battery
Battery Capacity 28V - 70A
Battery Working Time One hour

Dimensions

660 x 480 x520mm

Weight

Approx.80kg

Operating Temp

-10ºC - +55ºC

Humidity

5% - 90%



Power Amplifier Protection:

A. Over Heat protection – Thermal protector

B. Over current protection

C. High input Voltage and low Voltage protection

D. VSWR protection: against antenna miss-match including open and short circuit



Remote Control: Wire Control Panel available

A. Output power LCD Indication

B. Output power adjusting by LCD

C. Output power on/off per band

D. Jamming frequency setting by LCD Panel

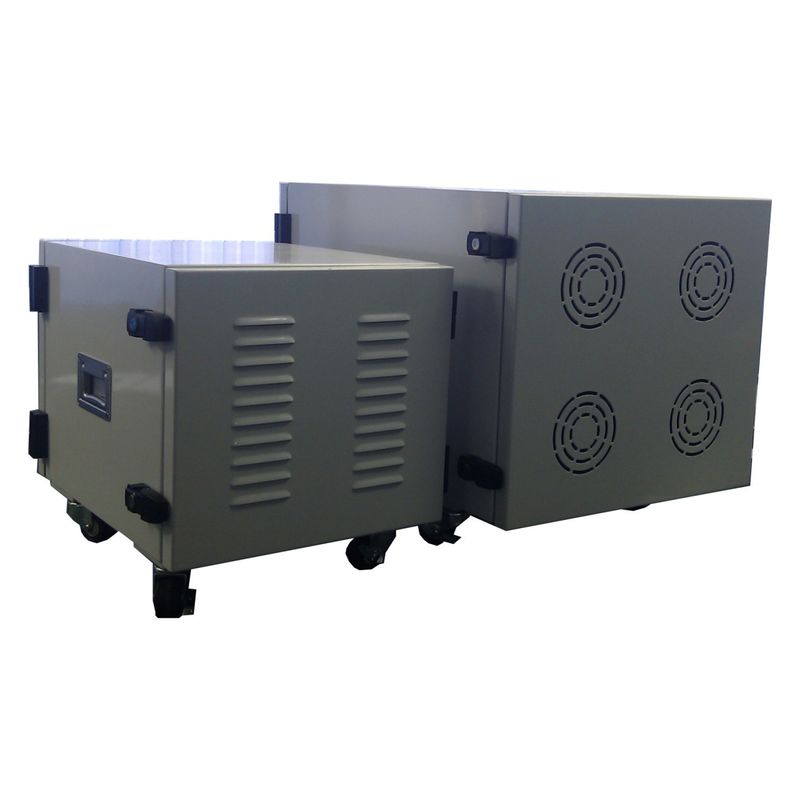

Product Image:



Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation



Waterproof Convoy Bomb Jammers 1300W Full Band Vehicle Mounted Easy Operation
