Product Details
Place of Origin: China
Brand Name: VBE
Certification: ISO9001
Model Number: VBE-P802
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: Customized Product
Packaging Details: Neutral Packing
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union,
Supply Ability: 10000 pcs Per Month
Product Name: |
8 / 2 Point Of Interface POI / Multi-Band Combiner |
Working Frequency: |
Customizable |
Third Order Intermodulation: |
≥125dBc |
Characteristic Impedance: |
50Ω |
Product Name: |
8 / 2 Point Of Interface POI / Multi-Band Combiner |
Working Frequency: |
Customizable |
Third Order Intermodulation: |
≥125dBc |
Characteristic Impedance: |
50Ω |

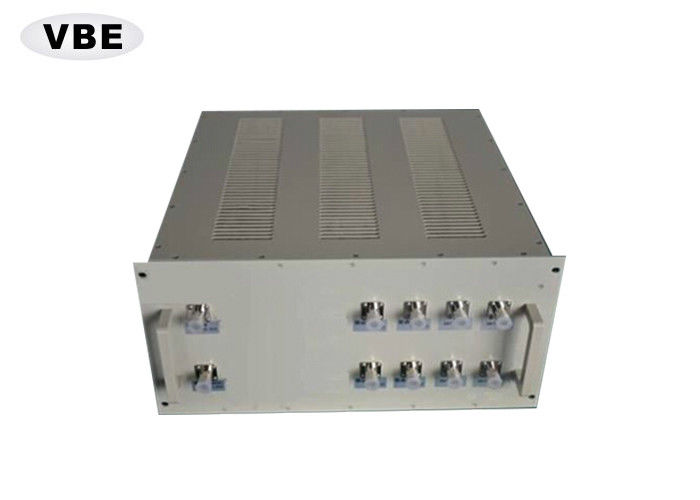

8 / 2 Point of Interface POI / Multi-Band Combiner
Product Instructions:
Point of interface (POI) is a multi-combining system for Base station and DAS.
It combines several mobile operators(BTS or DAS systems) into just two output distributed antenna.
This is cost-effective measure of realizing the coverage by signals from multi-networks.
Product Features:
1. High Performance and high reliability
2. Good isolation, good power handling ability
3. Multi band Support.
4. Cost effective antenna sharing solution for outdoor and indoor applications
5. Easy installation.
Technical Specifications:
(Example: GSM900 + CDMA800 + TD-SCDMA + GSM900)
Item | Technology Data | ||||
System | GSM900 | CDMA800 | TD-SCDMA | GSM900 | |
Working Frequency | 909-915(MHz) | 825~835(MHz) | 1880~1920(MHz) | 885~909(MHz) | |
954-960(MHz) | 870~880 (MHz) | 2010~2025(MHz) | 930~954(MHz) | ||
Insertion loss | ≤6.5dB | ≤5.5dB | ≤5.5dB | ≤6.5dB | |
Passband fluctuation | ≤1.2dB | ≤1.2dB | ≤1.2dB | ≤1.2dB | |
Isolation between the input port | ≥80@ CDMA800 | ≥80@ GSM900 | ≥80@ GSM900 | ≥60@CDMA800 | |
≥80@ TD-SCDMA | ≥80@ TD-SCDMA | ≥80@ CDMA800 | ≥25@ GSM900 | ||
≥25@ GSM900 | ≥60@ GSM900 | ≥80@ GSM900 | ≥80@ TD-SCDMA | ||
SWR | ≤1.25 | ||||
Port | 8 Input ports | ||||
2 Output ports | |||||
Power capability | Each input port not less then 50W,output port not less then 200W | ||||
Third order intermodulation | ≥125dBc | ||||
Characteristic impedance | 50Ω | ||||
Connector type | N-K |
