Product Name: |
RF Passive Component , Coupler , Power Splitter |
Working Frequency: |
698-2700MHz |
Third Order Intermodulation: |
≤-150dBc@2×43dBm(Input Port Reflection) |
Five Order Intermodulation: |
≤-165dBc@2×43dBm(Input Port Reflection) |
Product Name: |
RF Passive Component , Coupler , Power Splitter |
Working Frequency: |
698-2700MHz |
Third Order Intermodulation: |
≤-150dBc@2×43dBm(Input Port Reflection) |
Five Order Intermodulation: |
≤-165dBc@2×43dBm(Input Port Reflection) |

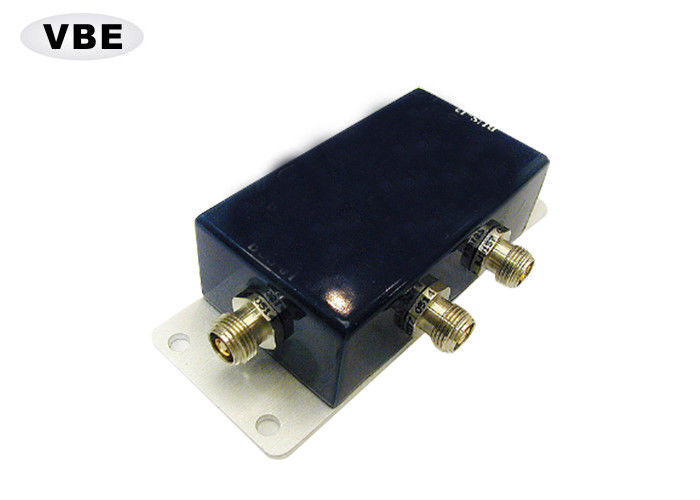

RF Passive Component , Power Coupler for Signal Booster / RF Repeater
Product Instructions:
VBE provide a variety of rf passive signal module solution,including the filter, duplexer. double-frequency or multiple frequency combiner, power splitters, couplers, etc.Widely used in high-end equipment in the system. Using multiple of high technology is applied to product design, functions and performance parameters of the products to meet different needs.
Technical Specifications:
Index | 6dB | 8dB | 10dB | 15dB | 20dB | 30dB |
Frequency(MHz) | 698-2700 | |||||
Coupling Precision (dB) | 6±1 | 8±1 | 10±1 | 15±1 | 20±1 | 30±1.2 |
VSWR | <1.2 | |||||
directivity | >20 | |||||
Insertion loss(dB) | <1.5 | <1.1 | <0.7 | <0.4 | <0.2 | <0.2 |
Power capablity | Average power: 200W | |||||
Peak powe: 1000W | ||||||
Third order intermodulation | ≤-150dBc@2×43dBm(Input port reflection) | |||||
Five order intermodulation | ≤-165dBc@2×43dBm(Input port reflection) | |||||
Impedance | 50Ω | |||||
Protection grade | IEC 60529:2001,IP65 | |||||
Operating temperature | +30ºC~+85ºC | |||||
Relative humidity | Up~100% |
