15dBm WCDMA Mobile Signal Booster 2100MHz Frequency With Built In Antenna

China 15dBm WCDMA Mobile Signal Booster 2100MHz Frequency With Built In Antenna supplier
15dBm WCDMA Mobile Signal Booster 2100MHz Frequency With Built In Antenna supplier 15dBm WCDMA Mobile Signal Booster 2100MHz Frequency With Built In Antenna supplier

Large Image :  15dBm WCDMA Mobile Signal Booster 2100MHz Frequency With Built In Antenna

Product Details:

Place of Origin: China
Brand Name: VBE
Certification: ISO9001
Model Number: VR-1545-W-I

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Customized Product
Packaging Details: Neutral Packing
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs Per Month
Contact Now
Detailed Product Description
Product Name: Mobile Signal Booster Repeater Working Frequency: Customizable
Noise Floor: <-47dB IM3: ≤-45dBc
Dimensions: 240*164*52mm Weight: 1kg

15dBm WCDMA 2100MHz Built in Antenna Pico Repeater , Mobile Signal Booster



Model: VR-4390-GW



Product Instructions:



      The WCDMA Built-in Antenna Pico Repeater/Signal Booster is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in WCDMA system.
      The repeater is working as a relay between the BTS and mobile phones. It receives the low-power signal from BTS via the Built-in Donor Antenna, linearly amplifies the signal and then retransmits it via the Built-in Service Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Product Features:



  • Automatic system gain Control (AGC) available.
  • Linear power amplification to effectively suppress inter-modulation and spurious emission.
  • Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously.
  • Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink.
  • Easy Installation and Automatic Operation, ready for use.


Applications:



To expand signal coverage or fill signal blind area where GSM and WCDMA signal is weak or unavailable.
Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages,
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, etc.


Technical Specifications:



Items Specifications
Working Frequency Uplink 1920-1980MHz
Downlink 2110-2170MHz
Output power Uplink 10dBm
Downlink 15dBm
Maximum Gain ( UL and DL ) 45dB
ALC ( Automatic Level Control ) >45dB
AGC (Automatic Gain Control) 30dB in step of 1dB (Auto)
System noise figure 5dB @ max. gain
Spurious Emission Mask Comply With 3GPP TS 25.106
Spurious Emission Comply With 3GPP TS 25.106 (Category B)
Noise Floor <-47dB
IM3 ≤-45dBc
Power supply(customized) 100V-240VAC 50Hz
Gain Flatness ≤4dB/3.84MHz
Modulation Accuracy ≤12.5%
I/O Inter-modulation Comply with 3GPP TS 25.106
Frequency stability ≤0.01ppm
Group Delay UL≤1μs
Peak Code Domain Error ≤-35dB@Spreadimg Factor 256
Weight 1Kg
Size 240*164*52mm

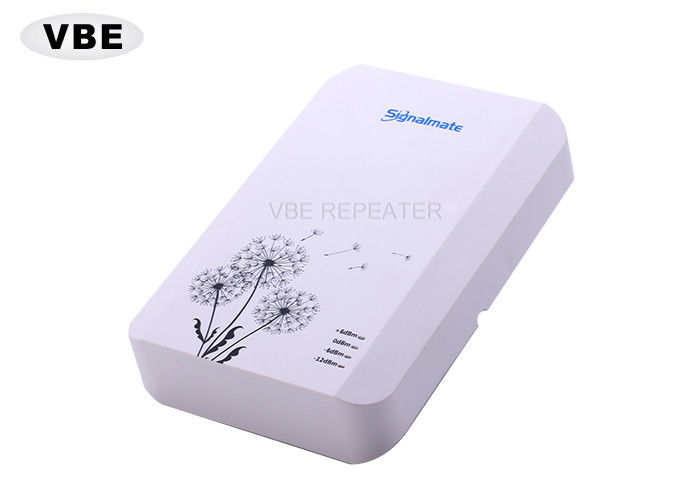

Product Image:

15dBm WCDMA Mobile Signal Booster 2100MHz Frequency With Built In Antenna
