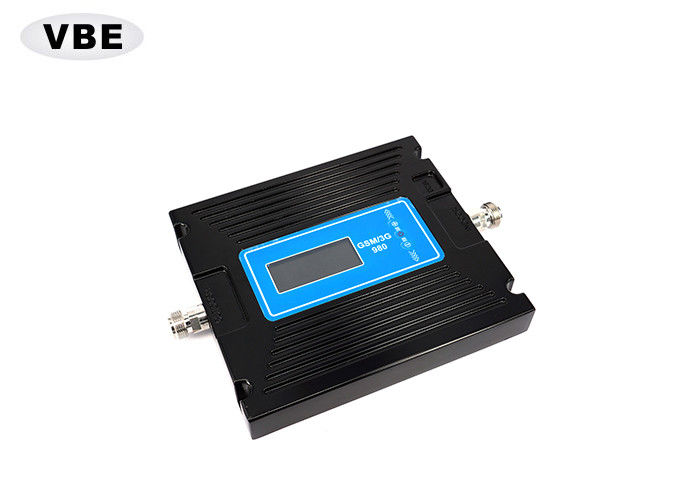

High Efficiency Mobile Signal Booster 50Ω Impedance 188*108*23mm Dimension
-
-
Large Image :
High Efficiency Mobile Signal Booster 50Ω Impedance 188*108*23mm Dimension
|
Product Details:
| Place of Origin: |
China |
| Brand Name: |
VBE |
| Certification: |
ISO9001 |
| Model Number: |
VBE-GSM980(Black) |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1Set |
| Price: |
Customized Product |
| Packaging Details: |
Neutral Packing |
| Delivery Time: |
3-7 days |
| Payment Terms: |
T/T, Western Union, MoneyGram |
| Supply Ability: |
10000 pcs Per Month |
|
Detailed Product Description
| Product Name: |
Indoor Pico OEM GSM980 Black Repeater |
Frequency Range: |
Uplink 890-915MHZ Downlink 935-960MHZ |
| Dimensions: |
188*108*23mm |
Built-overarea: |
1000 M² |
Indoor Pico OEM GSM980 Black Repeater , Cell Phone Signal Repeater , Mobile Signal Booster
Model: VBE-GSM980(Black)
Product Instructions
Indoor Pico Repeater (Signal Booster) series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.
Applications
- To expand signal coverage or fill signal blind area where signal is weak or unavailable.
- Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots
- Application Diagram
Technical Specifications
| Workig Voltage |
AC110V-240V DC5V |
| Frequency Range |
(uplink):890-915MHZ
(downlink):935-960MHZ |
| Gain(dB) |
Uplink≥70 Downlink≥75 |
| Power |
≥35dB |
| Pass band ripple |
≤3dB |
| Noise figure |
≤3dB |
| VSWR |
≤1.4(V.S.W.R) |
| Transmission Delay |
≤1μs |
| Ambient temperature |
-10ºC~60ºC |
| Impedance |
50Ω |
| Size: (H x W x D) |
188*108*23mm |
| coverage area |
1000 M² |
