Mobile Network Booster Device , Cell Signal Repeater High Speed Digital ALC

China Mobile Network Booster Device , Cell Signal Repeater High Speed Digital ALC supplier
Mobile Network Booster Device , Cell Signal Repeater High Speed Digital ALC supplier Mobile Network Booster Device , Cell Signal Repeater High Speed Digital ALC supplier

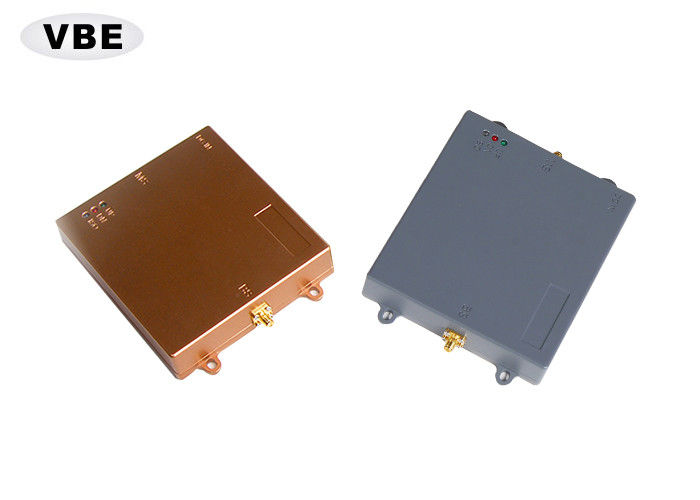

Large Image :  Mobile Network Booster Device , Cell Signal Repeater High Speed Digital ALC

Product Details:

Place of Origin: China
Brand Name: VBE
Certification: ISO 9001
Model Number: VBE-R1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Customized Product
Packaging Details: Neutral Packing
Delivery Time: 7-15 Working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per Month
Contact Now
Detailed Product Description
Product Name: Cell Phone Signal Repeater Dimension: 150x115x27 Mm
Net Weight: ≤0.5kg Work Voltage: DC 5.0V

Power Amplifier , Mobile Signal Booster , Cell Phone Signal Repeater



Product Instructions:



This product has the function of two-way wireless forwarding of mobile communication signals, effectively extending the coverage and filling the blind area of mobile communication coverage.Under the premise of not interfere with the base station, and fully amplification carrier frequency within the working frequency band signal, restrain interference, to provide users with stable and reliable signal, users enjoy high quality communication service. This product is mainly used for indoor small area coverage. Its widely used in: car park, business center, airtight entertainment venues, transport, etc.





Product Application:



Car park, business center, airtight entertainment venues, transport, etc.



Product Features:



  • Isolation detection of donor and regenerator antenna;
  • Automatic gain control (AGC) has a wide range;
  • High-speed digital ALC;
  • Output power indication;
  • The device will sleep automatically when no user speaks.. When the device is self-excited, the upper and lower automatic shutdown;
  • The device's uplink noise function will not interfere with the base station.
  • Automatic upper and lower gain balance;Small size, light weight, beautiful appearance, high gain and low power consumption;
  • Low noise amplification, improve the voice quality, reduce dropped words;
  • Good aluminum shielding, greatly improving the anti-interference ability;
  • Easy installation and opening.



Technical Specifications:



No. Module No. Color Work Frequency
      Uplink Downlink
1 C800-65-10-PT-DX Creamy White 825-835 870-880
2 G900-65-10-PT-YD Black 889-909 935-954
3 G900-65-10-PT-LT Black 909-915 954-960
4 G1800-65-10-PT-YD Grey 1710-1735 1805-1835
5 D1800-65-10-PT-LT Grey 1740-1755 1835-1850
6 W2100-65-10-PT-LT Golden 1920-1980 2110-2170
  Electronical Project Index
7 Max Gain 65±3dB
8 Uplink output power ≥10dBm
9 Downlink output poer ≥10dBm
10 Noise Factor(Max Gain) ≤5.0dB
11 Passband fluctuation ≤4.0dB
12 ALC/AGC range ≥30dB
13 Third Order Intermodulation Output 10dBm ≤-50dB
14 Max Input Power ≤-25dBm
15 Spurious Emission
Deviate from the working band edge
Outside of 2.5MHz
9kHz~150kHz ≤-36dBm@1kHz
16 150kHz~30MHz ≤-36dBm@10kHz
17 30MHz~1GHz ≤-36dBm@100kHz
18 1GHz~12.75GHz ≤-36dBm@1MHz
19 Transmission Delay ≤1.0us
20 Indicator lamp working status ISO(White blue light):Equipment isolation indicator light
21 DN(red light):Equipment Downlink running indicator lamp
22 UP(Green light):Equipment Uplink running indicator lamp
23 Work Voltage DC 5.0V
24 Work Current ≤1.5A
25 Power Ac adaptor Work Voltage AC 100-240V, 50/60Hz
26 Environmental temperature -5℃ ~+45℃
27 Relative Humidity ≤85%
  Structure of the project Index
28 RF Interface SMA-F
29 Power Interface KLD-40-17
30 Size 150x115x27 mm
31 Weight ≤0.5kg



Application Place:



Mobile Network Booster Device , Cell Signal Repeater High Speed Digital ALC
